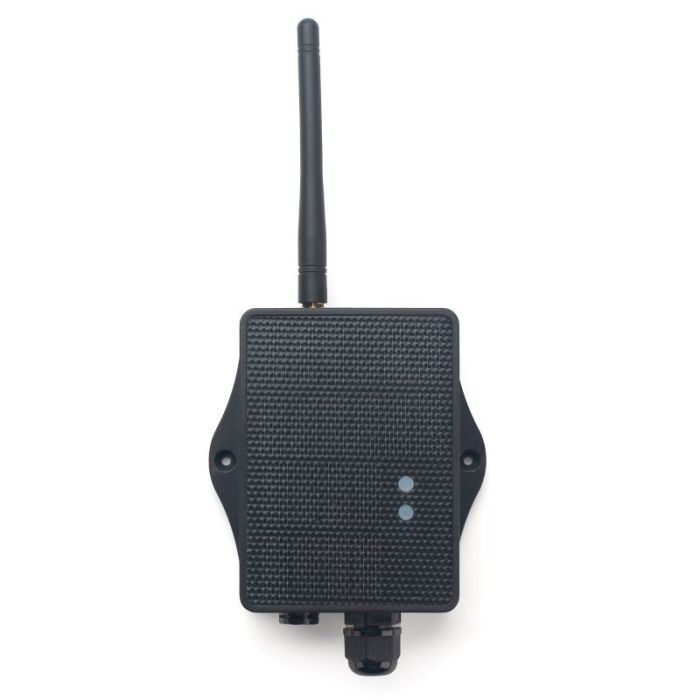

SN50v3-CS - Solar Powered NB-IoT/LTE-M Digital Sensor Node

Dragino SN50v3-CS is a NB-IoT and LTE-M Digital Sensor Node for Internet of Things. It has 5V output to power an external sensor, 3 interrupt inputs (or 3 digital I/O), 3 one-wire, 1 UART and 1 I2C interfaces. The node will convert the values to NB-IoT or LTE-M wireless data and send to IoT platform via a NB-IoT/LTE-M network.

You can use various IoT Servers and different uplink methods including MQTT, MQTTs, UDP and TCP.

The sensor node uses Quectel BG95-NGFF Multi-band LTE Cat M1/Cat NB2 module with GPS which can be used in most European countries. It has a card slot for an NB-IoT/LTE-M SIM card.

This device supports BLE for easy configuration and wireless OTA to update the firmware.

SN50v3-CS is powered by a rechargeable battery and a solar cell for continuous use. It has an external antenna and an IP66 enclosure with a waterproof M12 cable hole for an external sensor.

More information is available in the datasheet and user manual.
