Bias-tee Power Amplifier (TX)

Bias-tee Power Amplifier (TX)

SKU: BT-100
2-3 weeks
Add to Wish List
  • Buy 10 and save 10%:

    €32.67 €27.00

Product description

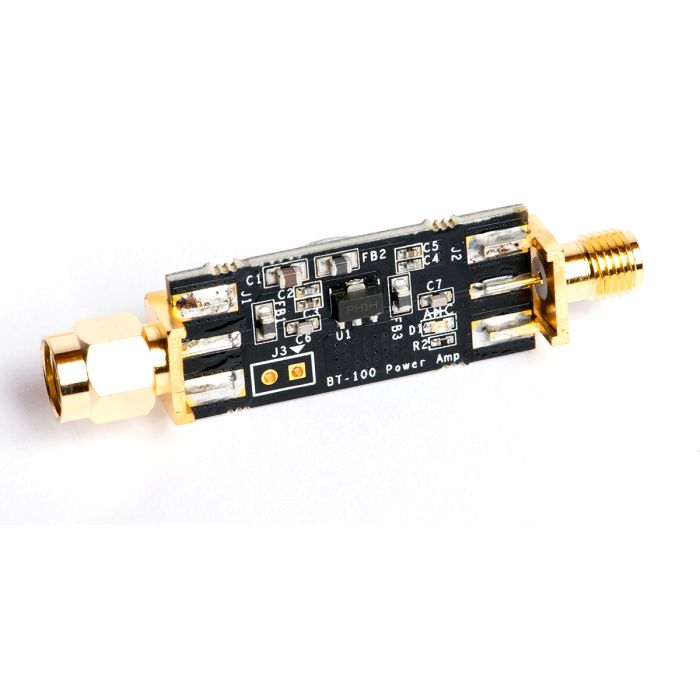

The BT-100 is a wideband bias tee TX Power Amplifier (PA) that draws its current from the bladeRF 2.0 micro’s SMA connectors. The BT-100 is versatile PA that is an ideal intermediary or final stage amplifier in a TX chain. bladeRF-cli and the libbladeRF API can be used to enable and disable the bias-tee when it is needed.

  • Features Mini-Circuits PHA-1H+ MMIC Amplifier – 50MHz to 6GHz MMIC
  • Power consumption: 200mW
  • Blue LED power indicator
  • Gain: +15.7db @ 200MHz, +11dB @ 2.4GHz
  • Noise figure: +1.6dB @ 200MHz, 3.1 @ 2.4GHz
  • Minimum output IP3 of +38dBm


More information is available on the website of Nuand.
