Web-Enabled 1-Wire Multi-Bus Module for up to 64 sensors

Item no.:


Availability: In stock

0 Incl. VAT: €217.74
  • 1+ p/p €179.95     Incl. Tax:€217.74
  •     Incl. Tax:€206.85 5+ p/p €170.95  save 6%

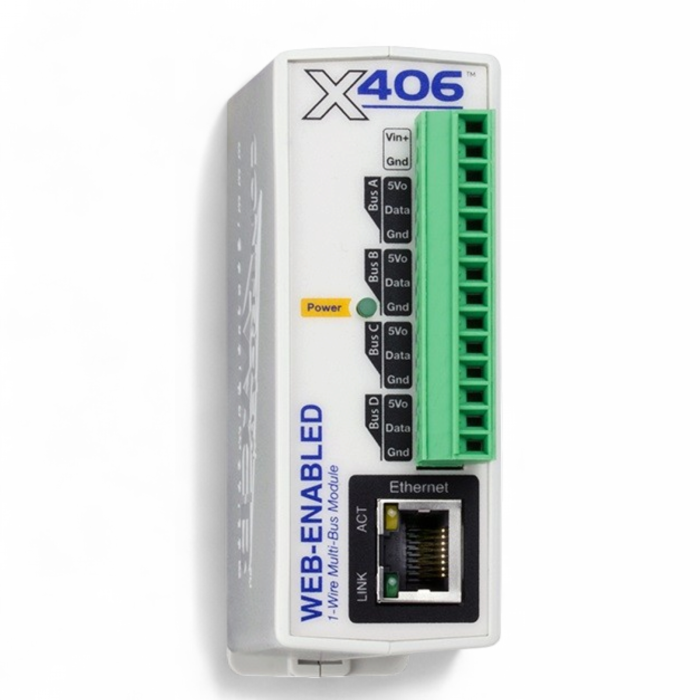

The X-406™ is a fully-featured, web-enabled temperature and humidity module with four independent 1-Wire Buses that allow for monitoring up to 16 temp/humidity sensors per bus, for a total of up to 64 sensors. The X-406 is ideal for applications which require many 1-Wire sensors or isolation between sensors, like monitoring server temperatures in a server room.

Sensor values can be monitored over any TCP/IP network including private networks, IP-based industrial control networks, and the Internet. Users can operate the X-406 using a web browser, the CBW Mobile app, or custom applications written for a computer, PLC, or other automation controller.

The X-406’s built-in interface allows you to create custom “Tasks” for simple and advanced control logic. Create tasks based on time, or sensor status. The X-406 also has a builtin BASIC interpreter. Other features are email notification and logging. The X-406 can control and monitor up to 32 remote devices, graph logged data, FTP logged data, email logged data, send encrypted emails, and monitor its power supply voltage.

The X-406 supports a number of Ethernet protocols including: HTTP/ HTTPS, Modbus/TCP, SNMP V1,V2 & V3, NTP, SMTP (Encrypted), and FTP/FTPS. The status of the device can be retrieved in human readable formats XML and JSON. The X-406 supports TLS V1.2 encryption as well as cloud integration (not required) for easier configuration and access.

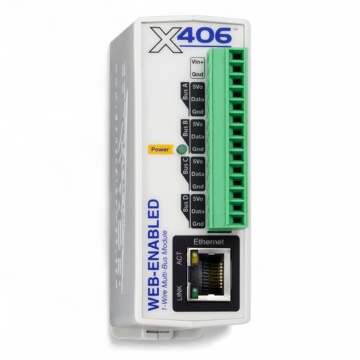

The required power supply is 9-28Vdc. Model with PoE is mentioned below.

More information is available on the website of ControlByWeb.
