WQS-NS - Solar Powered NB-IoT Water Quality Sensor Transmitter
-
Buy 10 and save 10%:
€76.18 €62.96 -
Buy 25 and save 15%:
€71.95 €59.46
Product description

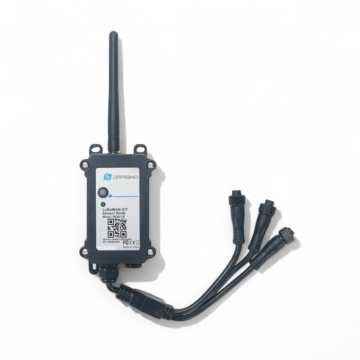

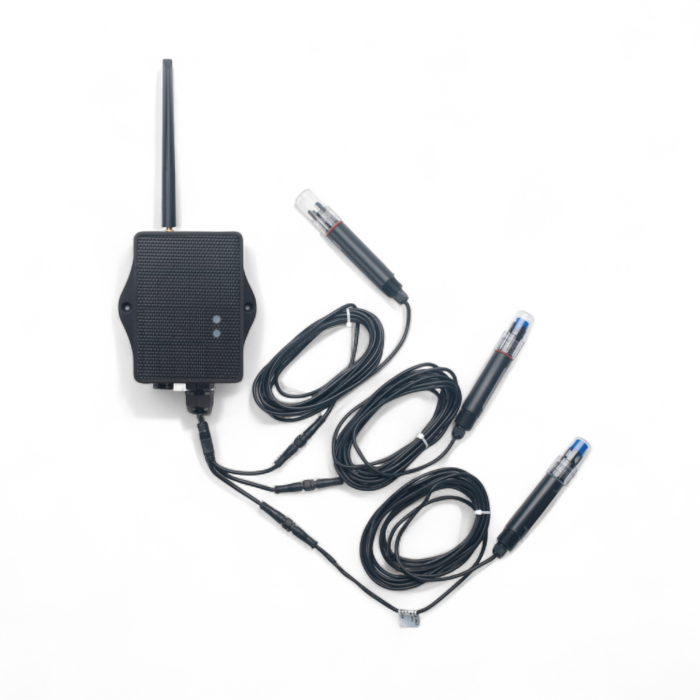

The Dragino WQS-NS is a main unit which allows connecting 1 to 3 water quality probes, including EC, pH, DO, ORP and TS probes. It detects water quality parameters and uploads the value via wireless to a IoT Server via NB-IoT network.
You can use various IoT Servers and different uplink methods including MQTT, MQTTs, UDP, TCP and CoAP.
The sensor node uses Quectel BC660K-GL Multi-band LTE Cat NB2 module which can be used in most European countries. It has a card slot for an NB-IoT SIM card. Ask your mobile operator about availability of SIM cards, coverage, frequencies used and login procedures. See for example Deutsche Telekom IoT and 1NCE.
This device supports BLE for easy configuration and wireless OTA to update the firmware.
This device is powered by a rechargeable battery and a solar cell for continuous use. It has an external antenna and an IP66 enclosure.
More information is available in the datasheet and on the website of Dragino.
