Qwiic 24 Bit ADC - 4 Channel (ADS1219)
Product description

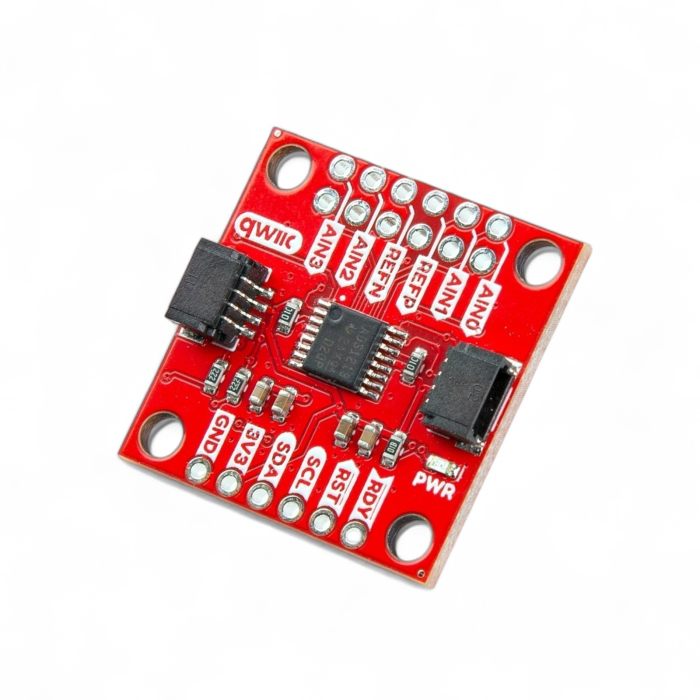

The SparkFun Qwiic 24-Bit ADC (ADS1219) adds four channels of high-precision, 24-bit analog input to your project over I2C, featuring programmable gain and up to 16 unique addresses.
Sometimes, the standard 10-bit or 12-bit ADC built into your microcontroller just isn't enough. When you need to measure minute changes in voltage with extreme accuracy, the SparkFun Qwiic 24-Bit ADC is the tool for the job. Built around the Texas Instruments ADS1219, this board provides four channels of high-resolution analog input, configurable as four single-ended inputs or two differential pairs.
To help you measure even the smallest signals (like those from strain gauges or scientific sensors), the chip features a programmable gain amplifier (PGA) with x1 and x4 gain settings. This allows you to "zoom in" on tiny voltage fluctuations with incredible precision, down to 61.04 nV per count.
More information is available on the website of Sparkfun.
